Руководство JavaFX GridPane Layout
View more Tutorials:

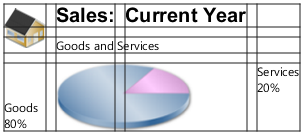

GridPane это контейнер, который делит его поверхность в сетку, в том числе строки и столбцы. Подкомпонент (child node) может находиться на ячейке или объединенной ячейке из рядомстоящих ячеек.


GridPaneDemo.java
package org.o7planning.javafx.gridpane;
import javafx.application.Application;
import javafx.geometry.HPos;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.PasswordField;
import javafx.scene.control.TextField;
import javafx.scene.layout.GridPane;
import javafx.stage.Stage;
public class GridPaneDemo extends Application {
@Override
public void start(Stage primaryStage) throws Exception {
GridPane root = new GridPane();
root.setPadding(new Insets(20));
root.setHgap(25);
root.setVgap(15);
Label labelTitle = new Label("Enter your user name and password!");
// Put on cell (0,0), span 2 column, 1 row.
root.add(labelTitle, 0, 0, 2, 1);
Label labelUserName = new Label("User Name");
TextField fieldUserName = new TextField();
Label labelPassword = new Label("Password");
PasswordField fieldPassword = new PasswordField();
Button loginButton = new Button("Login");
GridPane.setHalignment(labelUserName, HPos.RIGHT);
// Put on cell (0,1)
root.add(labelUserName, 0, 1);
GridPane.setHalignment(labelPassword, HPos.RIGHT);
root.add(labelPassword, 0, 2);
// Horizontal alignment for User Name field.
GridPane.setHalignment(fieldUserName, HPos.LEFT);
root.add(fieldUserName, 1, 1);
// Horizontal alignment for Password field.
GridPane.setHalignment(fieldPassword, HPos.LEFT);
root.add(fieldPassword, 1, 2);
// Horizontal alignment for Login button.
GridPane.setHalignment(loginButton, HPos.RIGHT);
root.add(loginButton, 1, 3);
Scene scene = new Scene(root, 300, 300);
primaryStage.setTitle("GridPanel Layout Demo (o7planning.org)");
primaryStage.setScene(scene);
primaryStage.show();
}
public static void main(String[] args) {
launch(args);
}
}

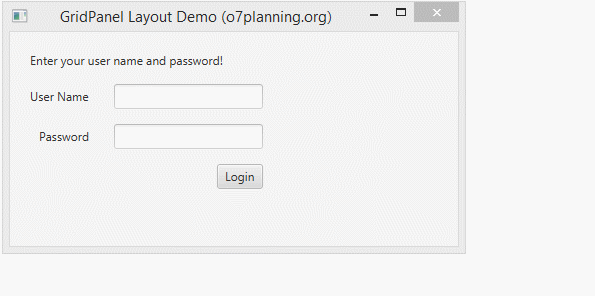

Запуск примера:

- TODO:
